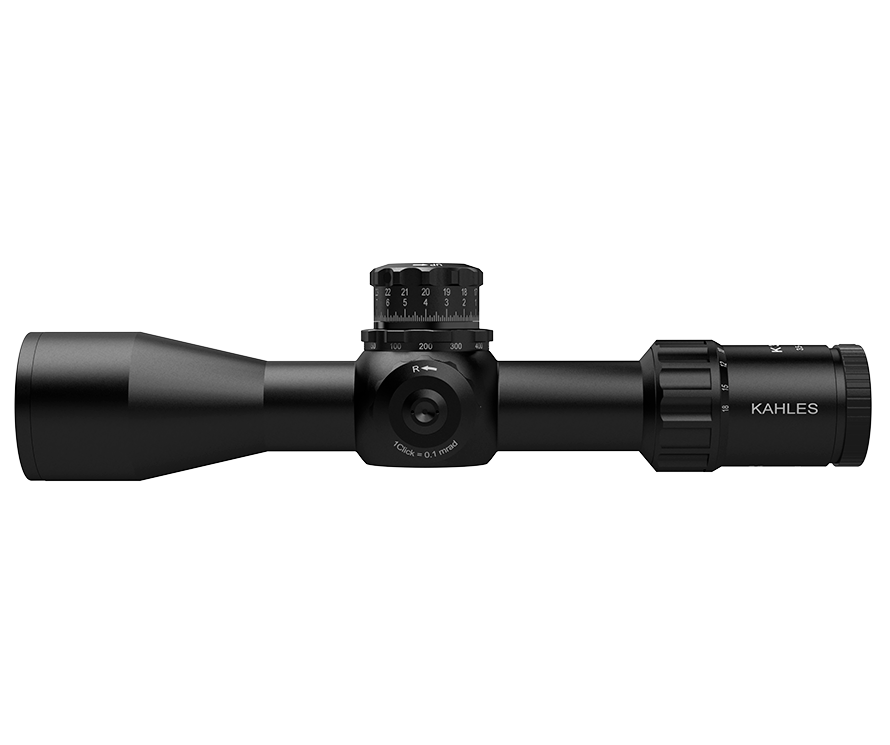

The K318i is tangible optical and mechanical precision packaged in an ultra-short housing. With precise illuminated reticle in the 1st image plane and unique TWIST GUARD anti-twist protection.
Enlargement: | 3.5-18 |
Objective diameter: | 50 mm |
Pupillary distance: | 92 mm |
Field of view: | 9.3 - 2.0 m / 100 m |
Diopter compensation: | +2.5 / -3.5 dpt |
Twilight factor (DIN 58388): | 13.2 - 30.0 |
Correction of the meeting point / click: | 0.1 MRAD ¼ MOA |
Adjustment path (H / S): | 3.0 / 1.5 m / 100 m |
Parallax compensation: | 25 m to ∞ |
Center tube diameter: | 34 mm |
Length: | 313 mm |
Weight: | 940 g |
Reticle image plane: | 1 |
Illuminated: | Yes |
Guarantee: | ten years |
