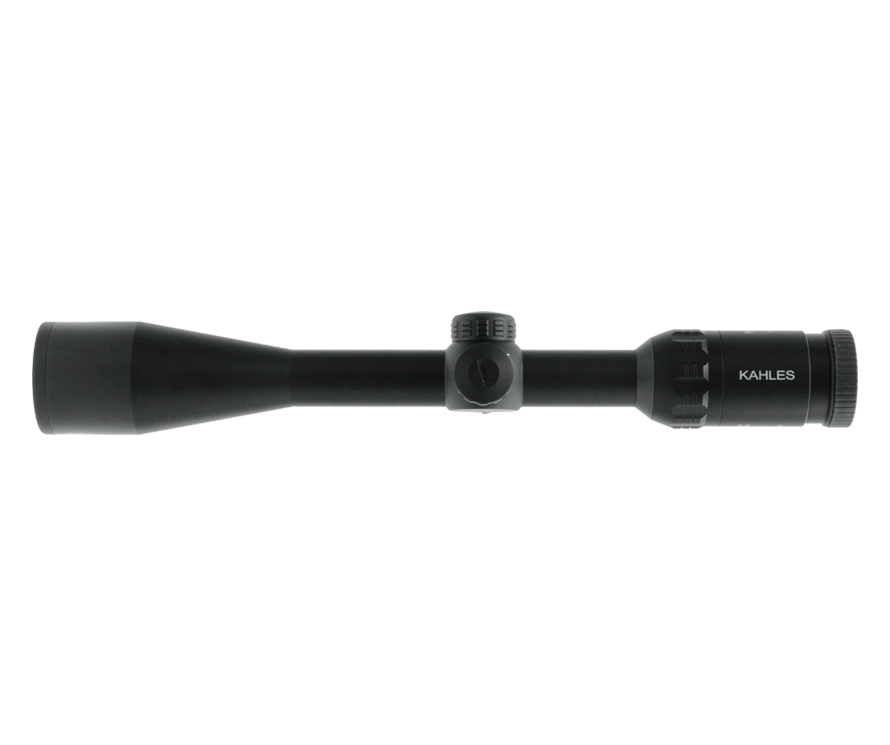

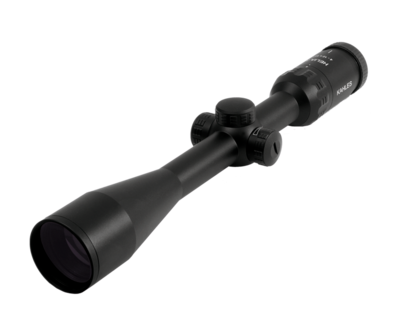

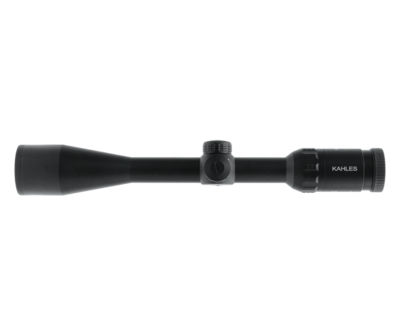

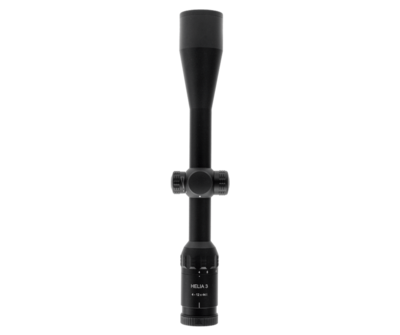

The HELIA 3 series combines classic elegance with high-quality technology and a brilliant premium look. Existing assemblies for 1 "central tubes can still be used in most cases.
Enlargement: | 4 -12 |
Objective diameter: | 44 mm |
Pupillary distance: | 90 mm |
Field of view: | 9.2 - 3.3 m / 100 m |
Diopter compensation: | +2 / -3.5 dpt |
Twilight factor (DIN 58388): | 13.3 - 23.0 |
Correction of the meeting point / click: | 10 mm |
Adjustment path (H / S): | 1.1 / 1.1 m / 100 m |
Center tube diameter: | 25.4 mm |
Length: | 351 mm |
Weight: | 485 g |

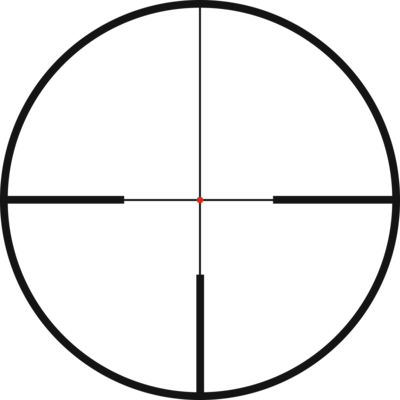

Reticle image plane: | 2 |
Illuminated: | Yes |
