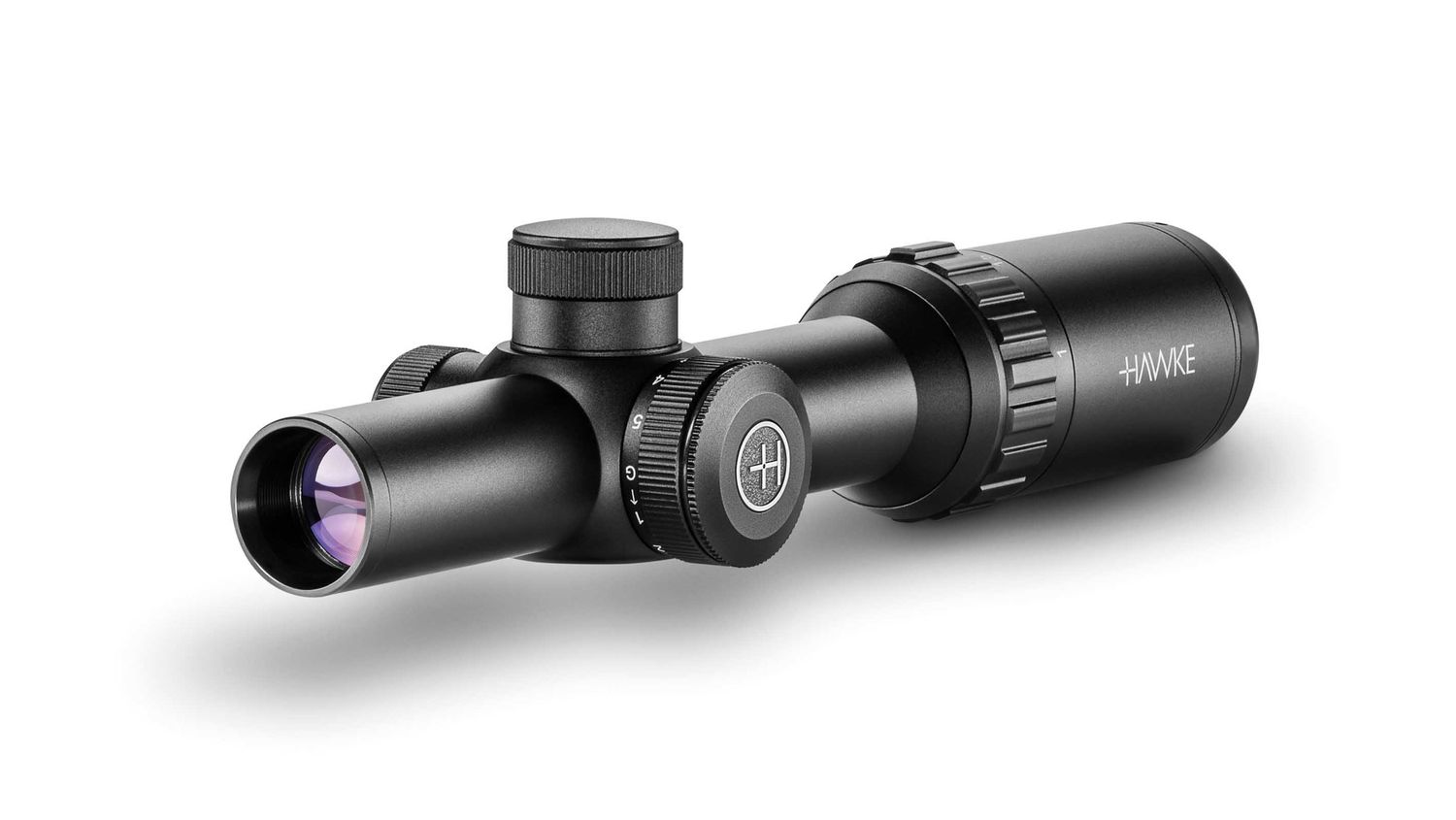

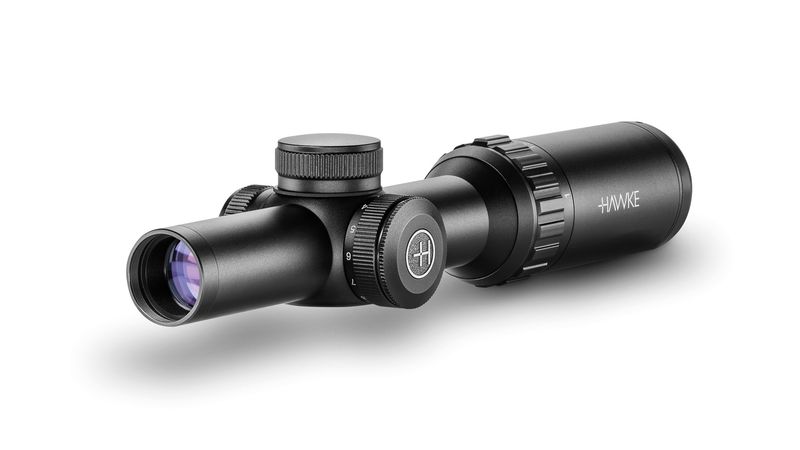

Vantage IR 1-4x20 L4A FD Reticle

HAWKE CHANGES THE GAME FOR THE TURKEY MARKET

The new Turkey Dot IR reticle offers fast acquisition of your target when every second counts. Use it on 1x for true reflex shooting when your turkey is up close and personal, or at longer distances with magnification up to 4 power.

• 4 inch long eye relief
• 1/2 MOA low-profile turrets
• Favorable reticle
• Magnified turkey optic
• All caliber rated
• Red and Green illumination

Turkey Dot Reticle

The new Turkey Dot IR reticle offers fast acquisition of your target when every second counts. The 2 MOA illuminated center dot aimpoint is surrounded by a horseshoe that measures 10 inches at 50 yards, when on 4x magnification. Floating posts at 3, 6, and 9 o'clock to aid in rapid target acquisition.

• More Reticle Information

Objective Lens

20mm

Reticle

Turkey Dot IR

Parallax

Fixed

Magnification

1 - 4x

Optical System

System H2

Focal Plane

SFP (Second Focal Plane)

Scope Tube

1 Inch

Illumination

5 Levels - Red/Green

Field of View

99.3 - 24.8ft @100yds

33.1 - 8.3m @100m

Field of View (°)

18.9 - 4.7

Eye Relief

4in

101mm

PX/Focus

50yds

46m

Exit Pupil

0.79 - 0.2″

20 - 5mm

Turret Type

Capped

Turret Caps

YES

Click Value

¹⁄ ₂MOA

Elevation Turret Clicks (max)

110 MOA

Windage Turret Clicks (max)

110 MOA

Ocular Type

Fast Focus

Power Selector

Knurled Posi-Grip

Lens Coating

Fully Multi-Coated - 11 Layers

Length

8.7in

222mm

Weight

11.7oz

333g
