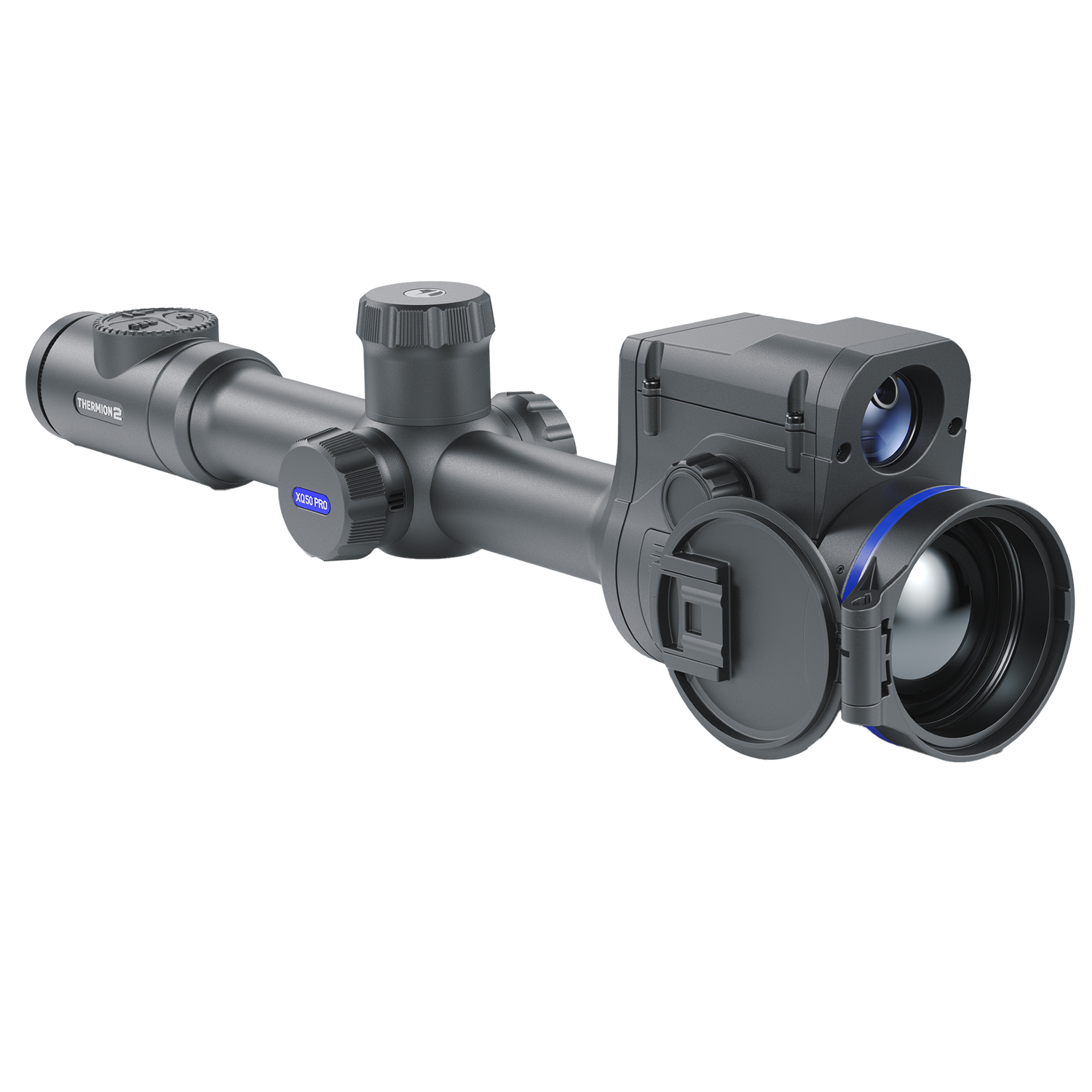

PULSAR THERMION 2 LRF XQ50 PRO THERMAL RIFLE

Model

LRF XQ50

SKU

76555

Microbolometer

Type

uncooled

Resolution, pixels

384x288

Pixel Pitch, µm

17

NETD, mK

< 25

Frame refresh rate, Hz

50

Optical Specifications

Lens, mm

F50 F/1.0

Magnification, x

3-12

Eye relief, mm/inch

50/1.96

Field of view (H), °/m@100

7.5/13.1

Diopter adjustment, D

-3/+5

Detection distance (Object of "deer" type), m/y

1800/1968.5

Aiming Reticle

Click value, mm@100 m – when magnifying, x

13 mm – 3х

6.5 mm – 6х

3.25 mm –12х

Click range, mm@100 m (H/V)

2600/2600

Display

Type

AMOLED

Resolution, pixels

1024х768

Operating Features

Diameter of the riflescope body to assemble the mounting rings, mm

30

Power Supply, V

3–4.2

Battery type / Capacity / Rated Output Voltage

Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable)

or

Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)*

Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in)

External Power Supply

5 V, 9 V (USB Type-C Power Delivery)

Battery Packs (built-in APS5 and removable APS2) operating time at temp. = 22 °C, hrs**

10

Max. recoil power on rifled weapon, Joules

6000

Max. recoil power on smoothbore weapon, caliber

12

Degree of protection IP code (IEC60529)

IPX7

Operating temperature, °С / °F

-25 – +50 / -13 – +122

Dimensions with an eyecup, mm/inch

420x78.5x94.5 / 16.54x3.09x3.72

Weight (without removable battery), kg/oz

0.97 / 34.22

Video Recorder

Photo / video resolution, pixels

1024x768

Video / photo format

.mp4 / .jpg

Built-in memory

16 GB

Wi-Fi Channel***

Frequency

2.4/5 GHz

Standard

IEEE 802.11 b/g/n/ac

Laser Rangefinder

Wavelength, nm

905

Max. Measurement Range, m/y****

800 / 874.9

Measurement Accuracy, m

1
