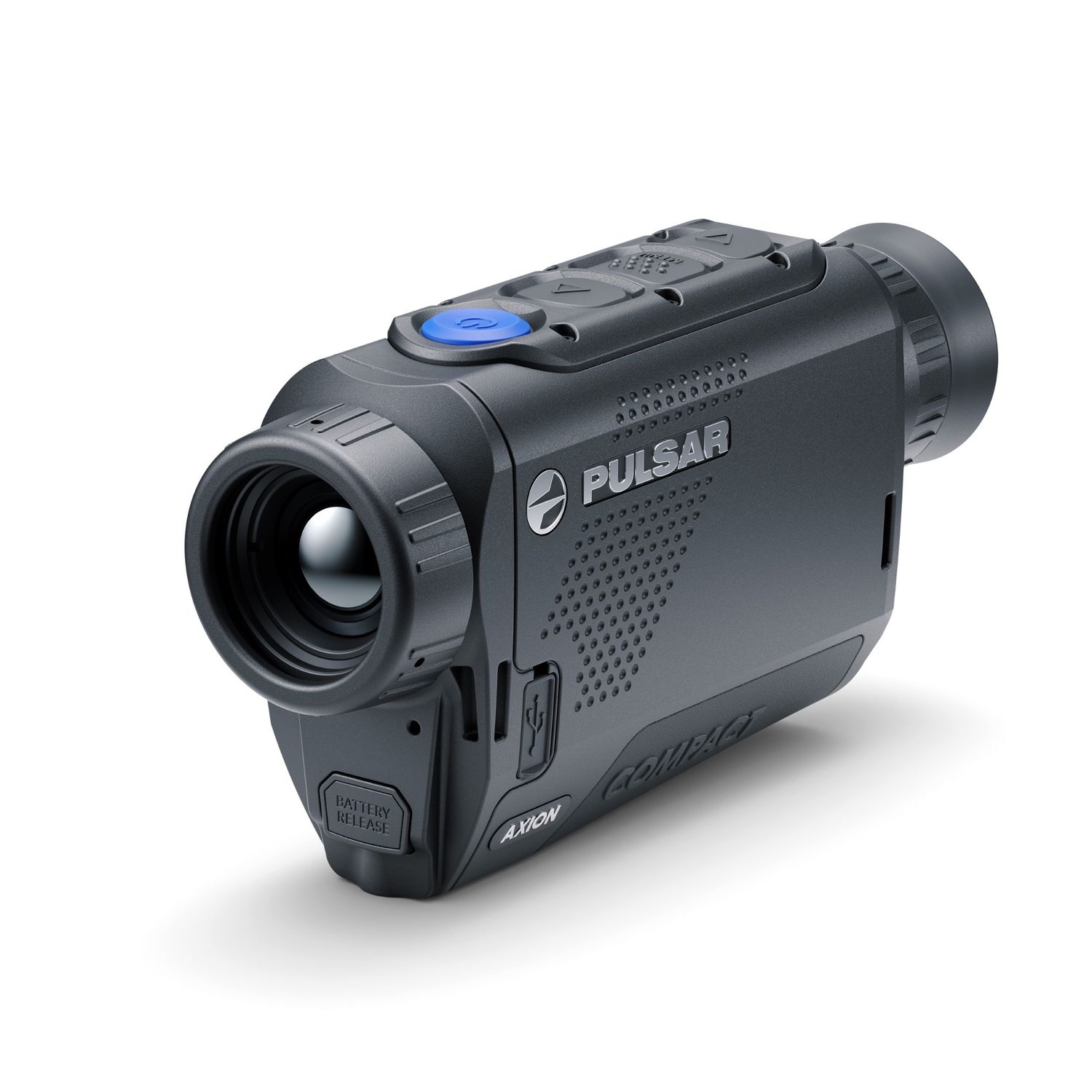

Model | XQ19 Compact | |
SKU | 77517 | |
Microbolometer | ||
Type | uncooled | |
Resolution, Pixels | 384х288 | |
Pixel Pitch, µm | 17 | |
Sensor NETD, mK | < 25 | |
System NETD, mK | < 18 | |
Frame Rate, Hz | 50 | |
Optical Characteristics | ||
Optical Magnification, x | 1.5 | |
Smooth Digital Zoom | 1.5-6 | |
Digital Zoom, x | x1, x2, x4 | |
Relative Aperture, D/f’ | 1.0 | |
Minimum Observation Distance, m/y | 3/3.28 | |
Eye Relief, mm | 14/0.55 | |
Exit Pupil Diameter, mm | 4/0.16 | |
Angular Field of View (Horizontal x Vertical), degree | 19.5/12.3 | |
Linear Field of View (Horizontal x Vertical), m at 100 m | 34.7/21.5 | |
Eyepiece Focus Range, Diopter | +4 / -5 | |
Detection Distance for Deer-Sized Objects, m/y | 750 / 820 | |
Display | ||
Type | AMOLED | |
Resolution, Pixels | 640×400 | |
Operational Characteristics | ||
Power Supply, V | 3 – 4.2 | |
Battery Type/Capacity/Nominal Output Voltage | APS 3 Li-ion Battery Pack / 3200 mAh / DC 3.7 V | |
External Power Supply | 5 V (USB Type-C) | |
Battery Run Time at t=22°C, hours* | 8 | |
Degree of Protection, IP Code (IEC60529) | IPX7 | |
Operating Temperature Range, °C / °F | -25 … +40 / -13 – +104 | |
Dimensions, mm/inch | 134.5x38x71 / 5.3×1.5×2.8 | |
Weight (with battery), kg/oz | 0.3 / 10.6 | |
Video Recorder | ||
Photo/Video Resolution, Pixels | 960х600 | |
Video/Photo Format | .mp4 / .jpg | |
Built-in Memory | 64 GB | |
Wi-Fi Channel** | ||
Frequency | 2.4/5 GHz | |
Standard | IEEE 802.11 b/g/n/ac |
*Actual operating time will depend to what extent the Wi-Fi and built-in video recorder is used.
**Reception range may vary depending on various factors: obstacles, other Wi-Fi networks.
