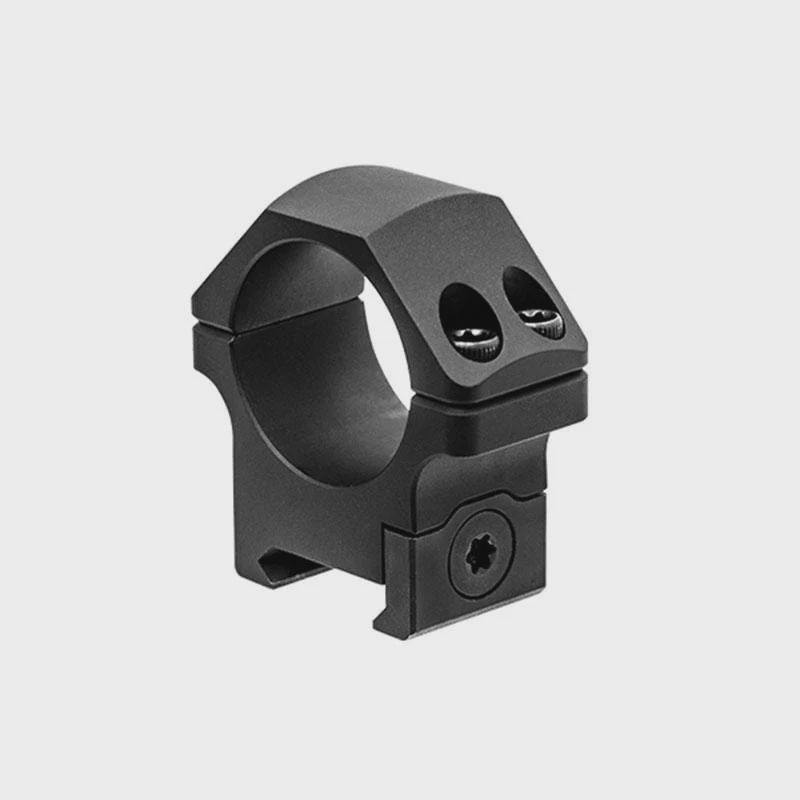

Leapers UTG-PRO 30MM Picatinny Mount Rings

• Proudly Designed and Made in USA
• The Innovative P.O.I® (Precision Optics Interface) Addresses 3 of the Most Critical Areas in Scope Rings -
• Progressively Machined for a Precise Inner Ring Surface to Achieve a Seamless Ring-to-Scope Interaction
• Low Profile and Flush-fitting Locking Side Plate Controlled by Dual Spring Loaded Guide Rods Interfacing with the Rail with Torx Screw Locking to Ensure Secure and Repeatable Zero Hold
• Square-shaped Integral Recoil Stop Interfacing with a Picatinny Slot via Complete Surface Contact to Eliminate the Possibility of Forward and Aft Movement from Recoil Vibrations
• 2 Piece Ring Set, Each Equipped with 4 Top Torx Screws Designed with a 22mm Ring Width
• Designed to Fit on Mil-spec 1913 Picatinny Rail Platforms
• Machined from 6061-T6 Aluminum Alloy and 4605 Steel with Matte Black Hard Coat Anodize
• UTG PRO® Original Snag-free Contoured Profile with Reduced Weight and Size

Features:

• Made in the USA
• Leapers Precision Optics Interface (POI) to accurate and reliable mounting
• 4 Top Torx Screws
• Designed to fit on mil-spec 1913 Picatinny rail platforms
• Machined from 6061-T6 aluminium alloy and 4605 steel

Specifications - Low:

• Material - Aluminium/Steel
• Weight - 65g
• Pieces - 2
• Rail type - Picatinny
• Ring diameter - 30mm
• To fit - Scopes with a outsider objective lens diameter of up to 49mm
• Screws per ring - 4

Dimensions - Low:

• A - 30mm
• B - 22mm
• C - 10mm

Specifications - Medium:

• Material - Aluminium/Steel
• Weight - 73g
• Pieces - 2
• Rail type - Picatinny
• Ring diameter - 30mm
• To fit - Scopes with a outsider objective lens diameter of up to 59mm
• Screws per ring - 4

Dimensions - Medium:

• A - 30mm
• B - 22mm
• C - 15mm

Specifications - High:

• Material - Aluminium/Steel
• Weight - 79g
• Pieces - 2
• Rail type - Picatinny
• Ring diameter - 30mm
• To fit - Scopes with a outsider objective lens diameter of up to 73mm
• Screws per ring - 4

Dimensions - High:

• A - 30mm
• B - 22mm
• C - 22mm

NOTE: We recommend tightening the ring top screws with a torque value of about 25 inch-lb and the side plate screw with torque value of about 45 inch-lb.
