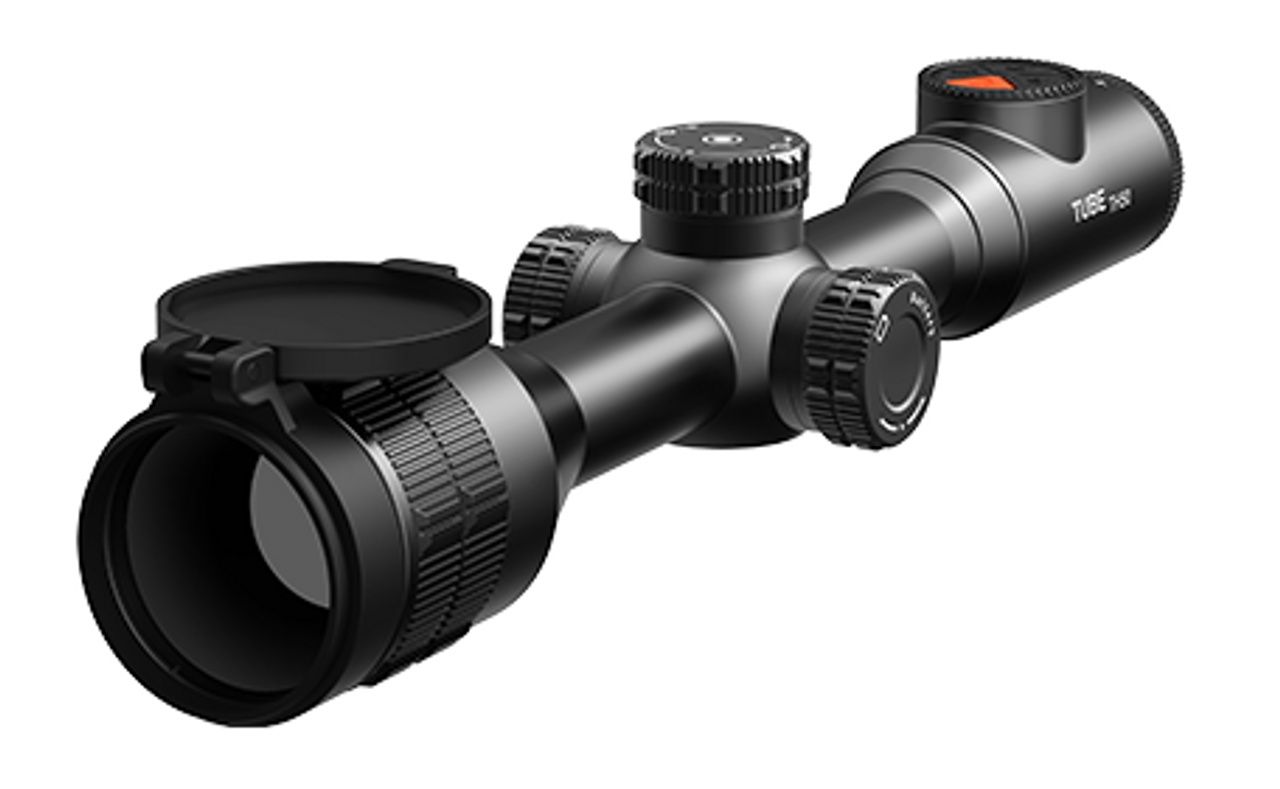

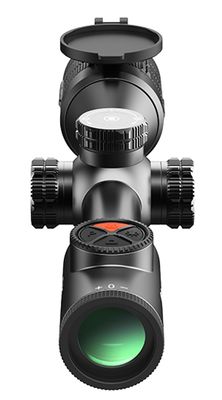

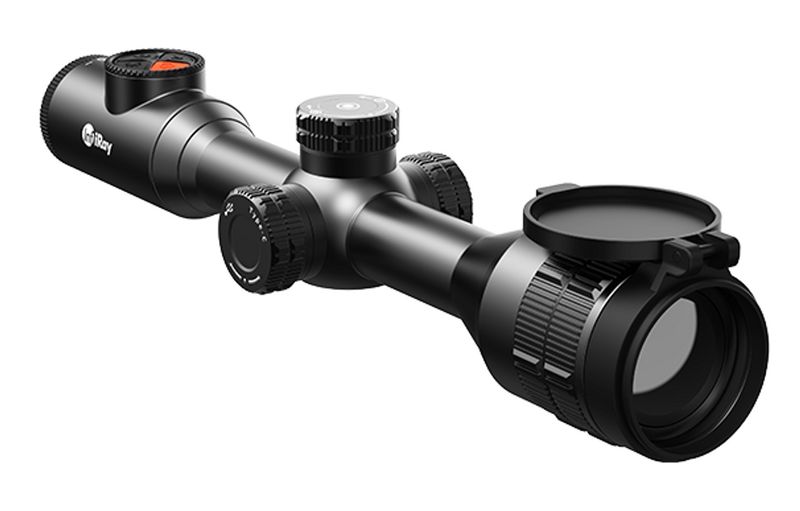

Introducing the TH50V2, the latest innovation from InfiRay that builds upon the triumphs of the original TH50. Now featuring an optional LRF and integrated microphone, this model retains its superb characteristics, including a 12um 640x512 sensor, 50mm optics, and a stunning 2560x2560 1.03" AMOLED display. Experience unparalleled comfort, unrivaled clarity, and unmatched precision with the TH50V2 - the ultimate fusion of technology and performance. Mount any of these to your favourite night hunting rifle with standard 30mm scope rings or an ADM QD Mount and you're ready to go.
Model |
TL35 v2 |
TL50 |
TH35 v2 |
TH50 v2 |
Thermal Sensor
|
384 x 288
|
384 x 288
|
640 x 512
|
640 x 512
|
Objective lens
|
35 | 50 |
35
|
50
|
Magnification, x
|
3.0x (1x-4x digital)
|
4.0x (1x-4x digital)
|
2.5x (1x-4x digital) | 3.5x (1x-4x digital) |
Field of view (HxV), degrees / m @ 100mtrs
|
7.5 x 5.6 | 5.2 x 4.0 |
12.5 x 10.0
|
8.8 x 7.0
|
Detection range, m
|
1800
|
2600
|
1800 |
2600 |
Sensor (Thermal)
|
||||
Type
|
uncooled vox
|
uncooled vox
|
uncooled vox
|
uncooled vox
|
Resolution, pixels
|
384 x 288
|
384 x 288
|
640 x 512
|
640 x 512
|
Pixel Pitch
|
12 um
|
12 um
|
12 um
|
12 um
|
NETD
|
<40 mK
|
<40 mK
|
<25 mK
|
<25 mK
|
Frame rate, Hz
|
50
|
50
|
50 |
50 |
Optics
|
|
|
|
|
Objective lens
|
35 | 50 |
35
|
50
|
Magnification, x
|
3.0x (4x zoom)
|
4.0x (1x-4x digital)
|
2.5x (4x zoom) | 3.5x (4x zoom) |
Field of view (HxV), degrees / m @ 100mtrs
|
7.5 x 5.6 | 5.2 x 4.0 |
12.5 x 10.0
|
8.8 x 7.0
|
Display
|
|
|
|
|
Resolution, pixels
|
1024 x 768 AMOLED | 1024 x 768 AMOLED |
2560 x 2560 OLED (round 1.03")
|
2560 x 2560 OLED (round 1.03")
|
Thermal Palettes
|
White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour | White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour |
White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour
|
White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour |
Range Performance
|
|
|
|
|
Detection range (person), m
|
1800
|
2600
|
1800 |
2600 |
Laser Rangefinder
|
(optional)
|
(optional)
|
(optional)
|
(optional)
|
Safety class for laser equipment according to IEC 60825-1:2014
|
-
|
-
|
-
|
-
|
Wavelength, nm
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
Max. measuring range, m
|
1000
|
1000
|
1000
|
1000
|
Measurement accuracy, m
|
+/- 1
|
+/- 1
|
+/- 1
|
+/- 1
|
Min. Measuring Range, m
|
-
|
-
|
-
|
-
|
Reticle
|
|
|
|
|
Picture in Picture
|
Yes (2x magnified)
|
Yes (2x magnified)
|
Yes (2x magnified)
|
Yes (2x magnified)
|
Number of preloaded reticles
|
6 (in 4 colours)
|
6 (in 4 colours)
|
6 (in 4 colours)
|
6 (in 4 colours)
|
Number of Zero Profiles available
|
3
|
3
|
3
|
3
|
Bluetooth Connection
|
supported
|
supported
|
supported
|
supported
|
Video Recorder
|
Video & Snapshot
(32Gb storage)
+ Audio recording
|
Video & Snapshot
(32Gb storage)
+ Audio recording
|
Video & Snapshot
(32Gb storage)
+ Audio recording
|
Video & Snapshot
(32Gb storage)
+ Audio recording
|
Environmental Characteristics
|
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IP67 | IP67 |
IP67
|
IP67
|
Power Supply
|
|
|
|
|
Output voltage, V
|
-
|
-
|
-
|
-
|
Battery type
|
2x 3300mAh (internal), 1x 18500 (replaceable) | 2x 3300mAh (internal), 1x 18500 (replaceable) |
2x 3300mAh (internal), 1x 18500 (replaceable)
|
2x 3300mAh (internal), 1x 18500 (replaceable)
|
Operating time on battery pack (at t=22°C), h *
|
15
|
15
|
8.5
|
8.5 |
External power supply, V
|
5V (USB Type-C)
|
5V (USB Type-C)
|
5V (USB Type-C) |
5V (USB Type-C)
|
Connections and Compatibilities
|
|
|
|
|
Max. recoil power on firearm
|
6000 joules | 6000 joules |
1000 g/s2
|
1000 g/s2 |
Mounting brackets on firearm
|
30mm rings | 30mm rings |
30mm rings
|
30mm rings
|
Weight & Size
|
|
|
|
|
Dimensions, mm
|
385 x 85 x 75 | 390 x 85 x 75 |
375 x 85 x 75
|
370 x 85 x 75
|
Weight, kg
|
< 0.950
|
< 0.985
|
0.91 |
0.94 |
Warranty
|
3 years |
3 years
|
3 years
|
3 years
|
Trade Data
|
|
|
|
|
SKU (Model #)
|
TL35v2 | TL50 |
TH35v2
|
TH50v2
|
