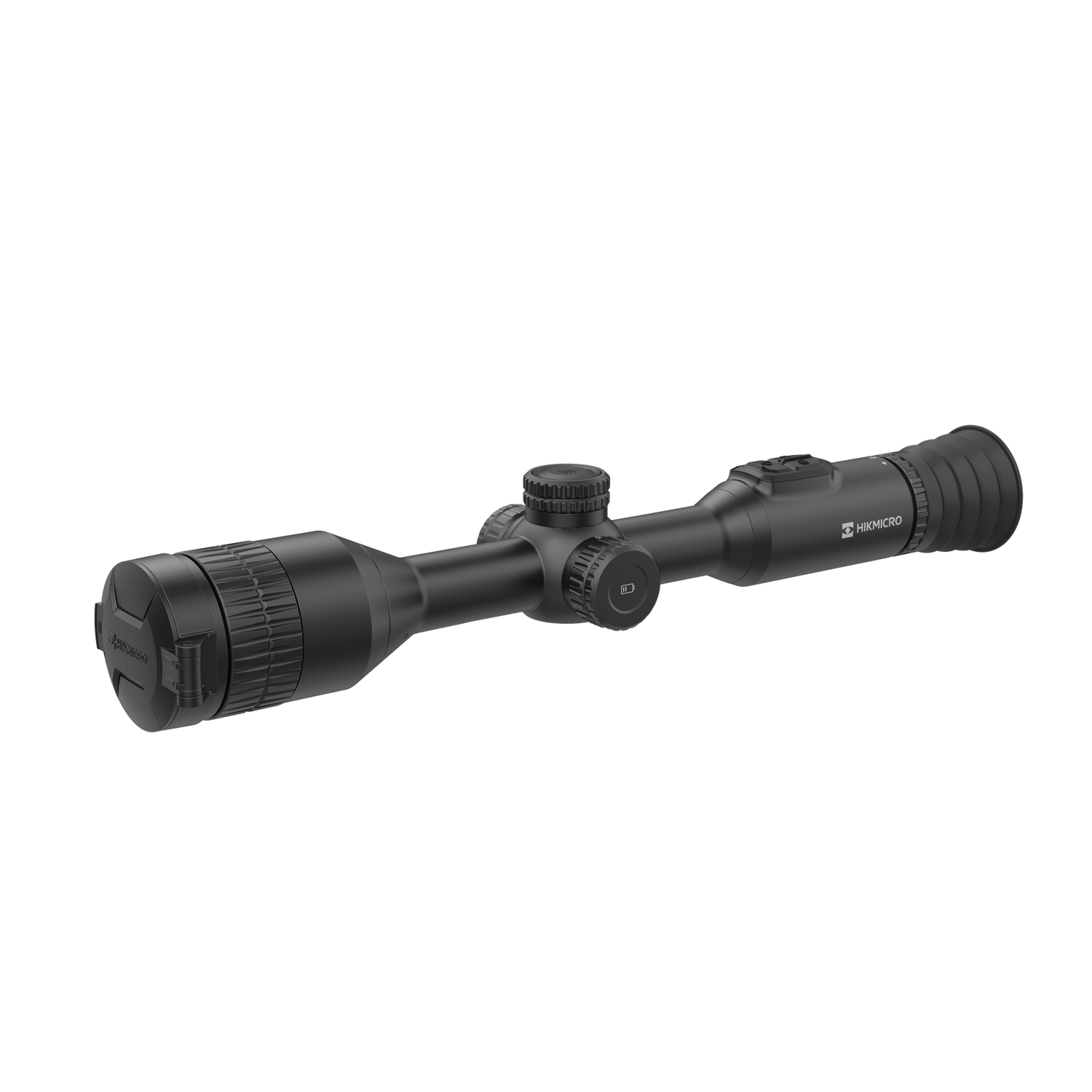

The HIKMICRO Stellar SQ50 2.0 Thermal Scope has a 640px, sub 20Mk thermal sensor. With its 50 mm focal lens and 1920 × 1080px OLED display, the SQ50 2.0 ensures perfect image quality and detail recognition even in the most challenging weather conditions. The traditional style 30mm tube design meets the needs of professional hunters who seek technological superiority. The scope is mainly applied to forest & field hunting and search and rescue scenarios.
50mm LENS AND UPGRADED SENSOR
The HIKMICRO Stellar SQ50 2.0 Thermal Scope comes with the all time most popular 50mm lens. The SQ50 is interpreted and processed by the 640×512 Sub 20mk thermal sensor and shown on the OLED display in a resolution of 1920 × 1080 pixels, the unit has the ability to keep a crystal clear image while also having an impressive Field Of View.
30mm RING MOUNTING
HIKMICRO put this high-tech system in a traditional looking exterior by retaining the well-known rifle scope design, this enables users who prefer this look to still utilise the outstanding features of this thermal imaging rifle scope and also keep using the conventional mounting system. With a slick new-aged look, The Stellar SQ50 2.0 can be mounted on 30mm rings, making changing from weapon to weapon a much easier and more effective process.
EXTENDED BATTERY LIFE
The HIKMICRO Stellar SQ50 2.0 Thermal Scope comes with two internal Lithium batteries and a replaceable CR123A battery, these power sources provide the user with 11 hours of use, which can be extended by replacing the CR123A battery when it’s used up.
Thermal Module | |
---|---|
Image Sensor | VOx Uncooled Focal Plane Arrays |
Max. Resolution | 640 × 512 |
Frame Rate | 50 Hz |
Pixel Interval | 12 μm |
Response Waveband | 8 μm to 14 μm |
NETD | Less than 20 mK (@25°C), F# = 1.0 |
Lens (Focal Length) | 50 mm, F1.0 |
Focus Mode | Focus Ring |
Detection Range | 2600 m |
Min. Focusing Distance | 5 m |
Magnification | 3.3x to 26.4x (8x) |
Supports continuous zooming | |
Field of View (H × V), | 8.8° × 5.3°/15.4 m × 9.2 m |
Degrees / m @100 m | |
Image Display | |
Display | 1920 × 1080, 0.49-inch OLED |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
Exit Pupil | 6 mm |
Eye Relief | 55 mm |
Diopter (Range) | -5D to 5D |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, Warm |
Contrast Adjustment | Yes |
Image Pro | Yes |
System | |
Record Video | On-board Video Recording |
Capture Snapshot | Yes |
Audio Recording | Yes |
Recoil-activation Recording | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (64 GB) |
PIP | Yes |
Hotspot | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Zeroing Profiles | 5 |
Freeze Zeroing | Yes |
Max. Recoil | 1000 g/0.4 ms |
Power Supply | |
Battery Type | Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) |
Battery Operating Time | 11 hours continuous running (@25°C, Wi-Fi off) |
Type-C Power Supply | DC 5 V/2 A, USB Type-C interface |
Supports QC3.0 | |
General | |
Protection Level | IP67 |
Mounting | Standard 30 mm |
Dimension | 425.4 mm × 84 mm × 71.4 mm |
Working Temperature | -30°C to 55°C (-22°F to 131°F) |
Weight | 950 g without external battery |
