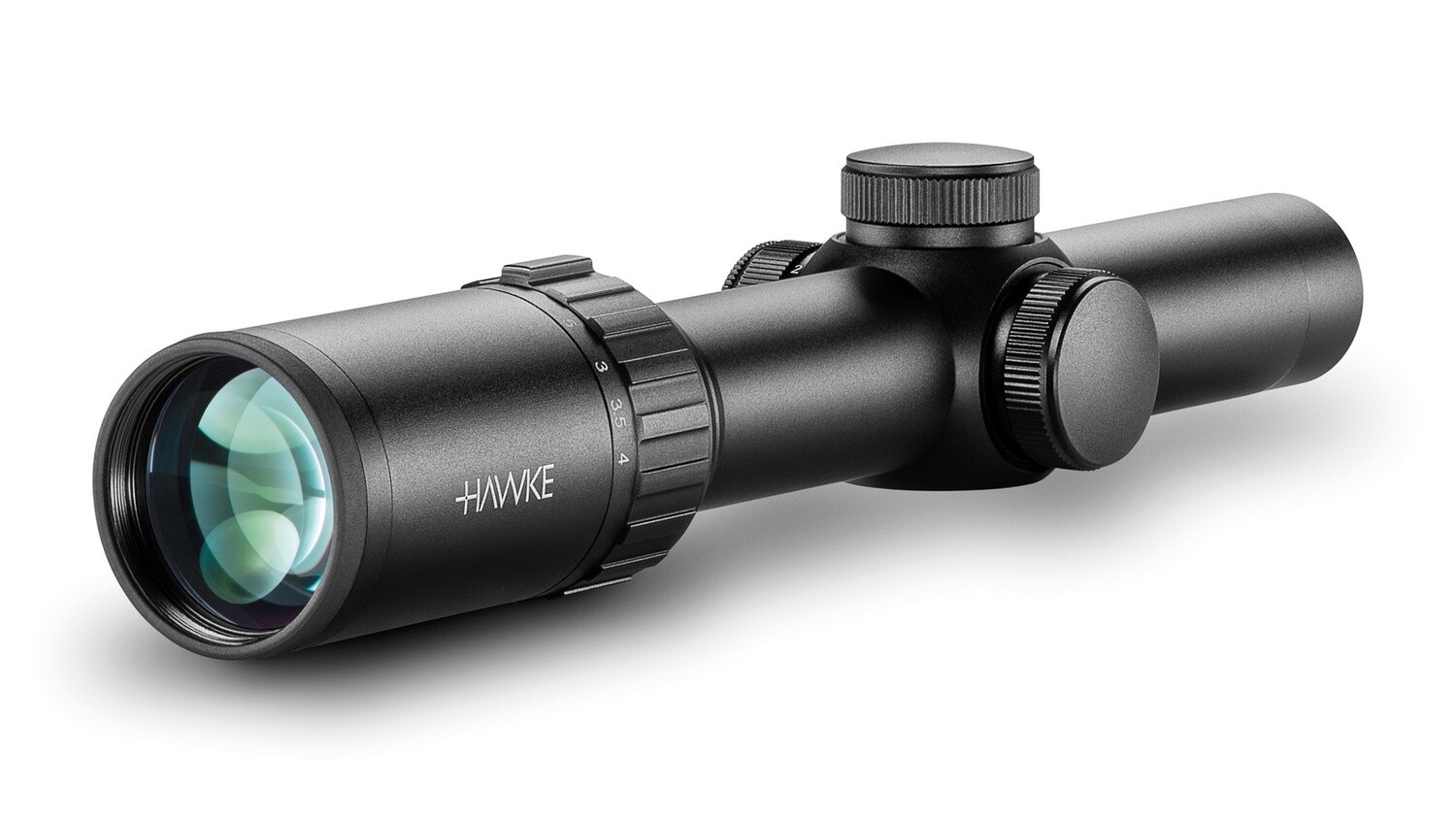

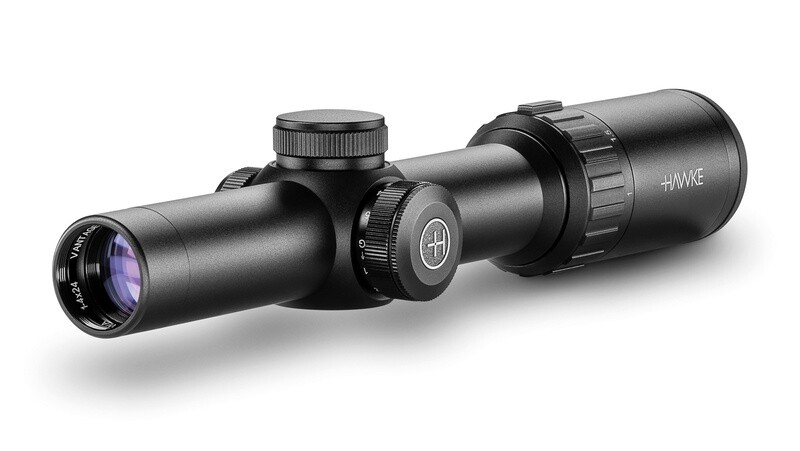

Hawke Vantage 30 Wide Angle IR

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

• Exposed Locking Turrets
• 30mm Mono-Tube Chassis
• Wide Angle
• Illumination
• 11 Layer Fully Multi-Coated Lenses
• High Torque Zoom Ring
• Fast Focus Eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

.223/.308 Marksman Reticle (12x)

Working with your bullet’s trajectory the .223/.308 Marksman (12x) reticle, exclusively from Hawke, provides usable aim points for long-range shooting. The reticle features illuminated central aim point and holdover aim points that increase in 100 yard/meter increments.

The holdover aim points on the lower post of the reticle are designed with gaps increasing in size. This more closely represents the fall of a bullet’s trajectory; the further the bullet travels, the faster the bullet falls. Hawke has carried out the complicated ballistic math, so you don’t have to.

The glass reticle is etched with aim points marked ‘100’ at center and increasing by 100 for each increment out to ‘600’. The reticle can be used for yards or meters depending on magnification setting.

Length:  329mm   13.0"

Weight:  565g     19.9oz

Eye relief:     90mm       3.5"

Focus/Parallax - Fixed Focus   91m    100yds

Field of View: 13.3-3.3m @100m      38.9-9.8ft @100yds

Exit Pupil: 10.5-3.5mm          0.41-0.14"

Chassis: 30mm Mono-tube

Optical System: 4-12x

Objective: 40mm

Illumination: Red / Green

Reticle: .223 / .308 Marksman

Elevation Increment: 1⁄4 MOA

Elevation Adjustment Range: 130 MOA

Windage Increment: 1⁄4 MOA

Windage Adjustment Range: 130 MOA

Material: Aluminium

Ocular Type: Fast Focus

Lens Coating: Fully Multi-Coated - 11 Layers

Power Selector Style: Knurled Posi-Grip

Focal Plane: Second Focal Plane (SFP)

Turret Caps: No

Turret Type: Exposed, Locking
