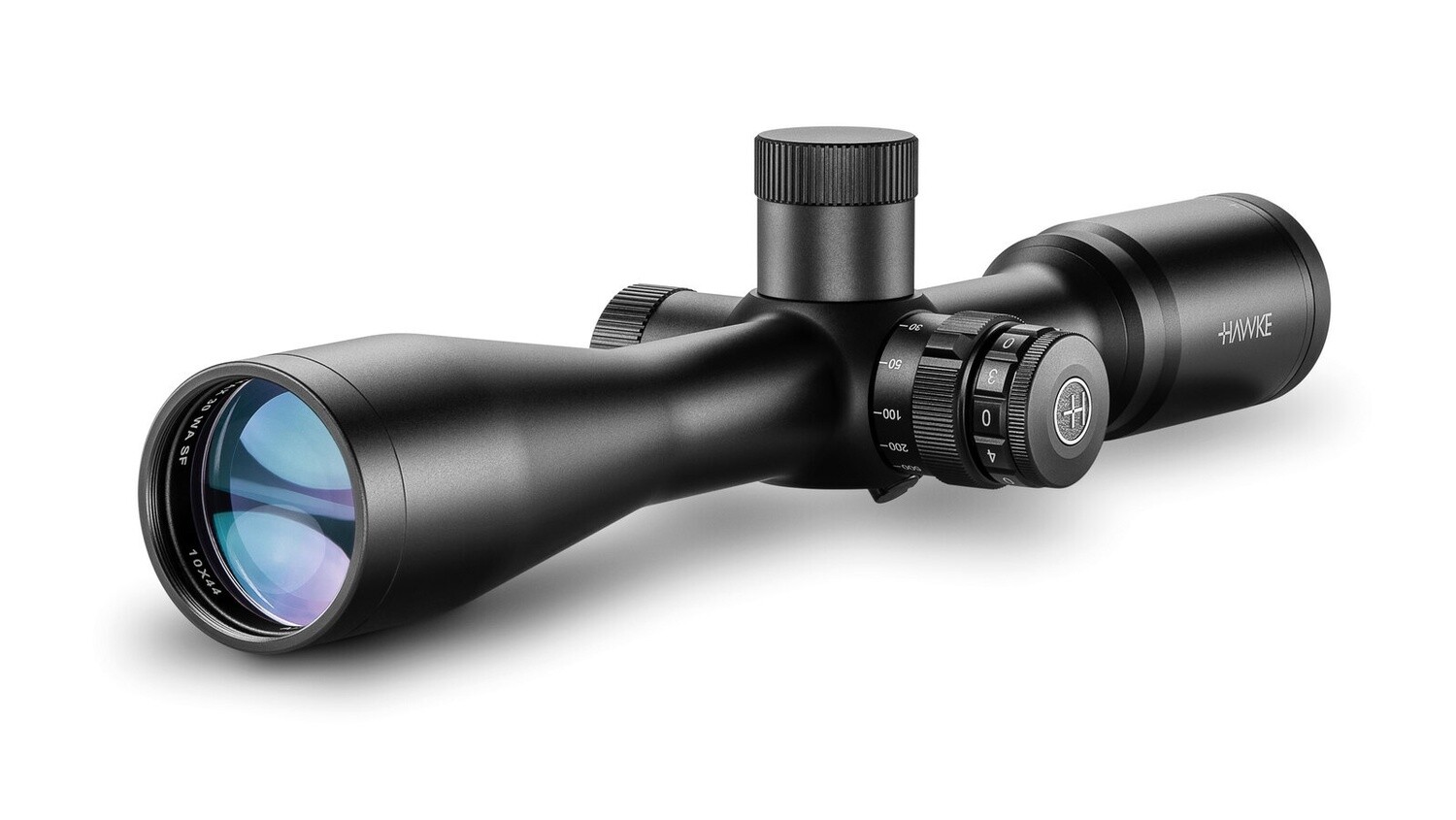

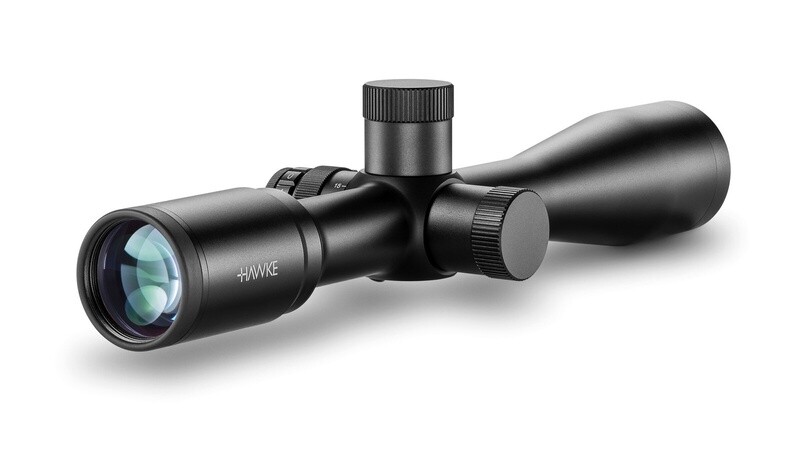

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.

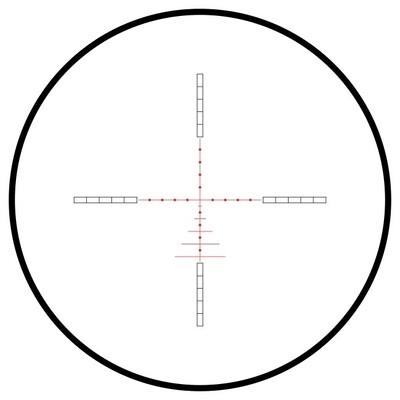

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Length: 388mm 15.3"
Weight: 778g 27.5oz
Eye relief: 102mm 4"
Focus/Parallax - Side Focus: 9m - ∞ 10yds - ∞
Field of View: 5.4-1.3m @100m 16.1-4.0ft @100yds
Exit Pupil: 6.3-1.6mm 0.25-0.06"
Chassis: 30mm Mono-tube
Optical System: 8-32x
Objective: 50mm
Illumination: Red (6 Levels With Off Positions In-Between)
Reticle: AMX IR
Elevation Increment: 1⁄10 MRAD
Elevation Adjustment Range: 16 MRAD
Windage Increment: 1⁄10 MRAD
Windage Adjustment Range: 16 MRAD
Material: Aluminium
Ocular Type: Fast Focus
Lens Coating: Fully Multi-Coated - 16 Layers
Power Selector Style: Knurled Posi-Grip
Focal Plane: Second Focal Plane (SFP)
Turret Caps: Yes
Turret Type: Capped Target Turrets
