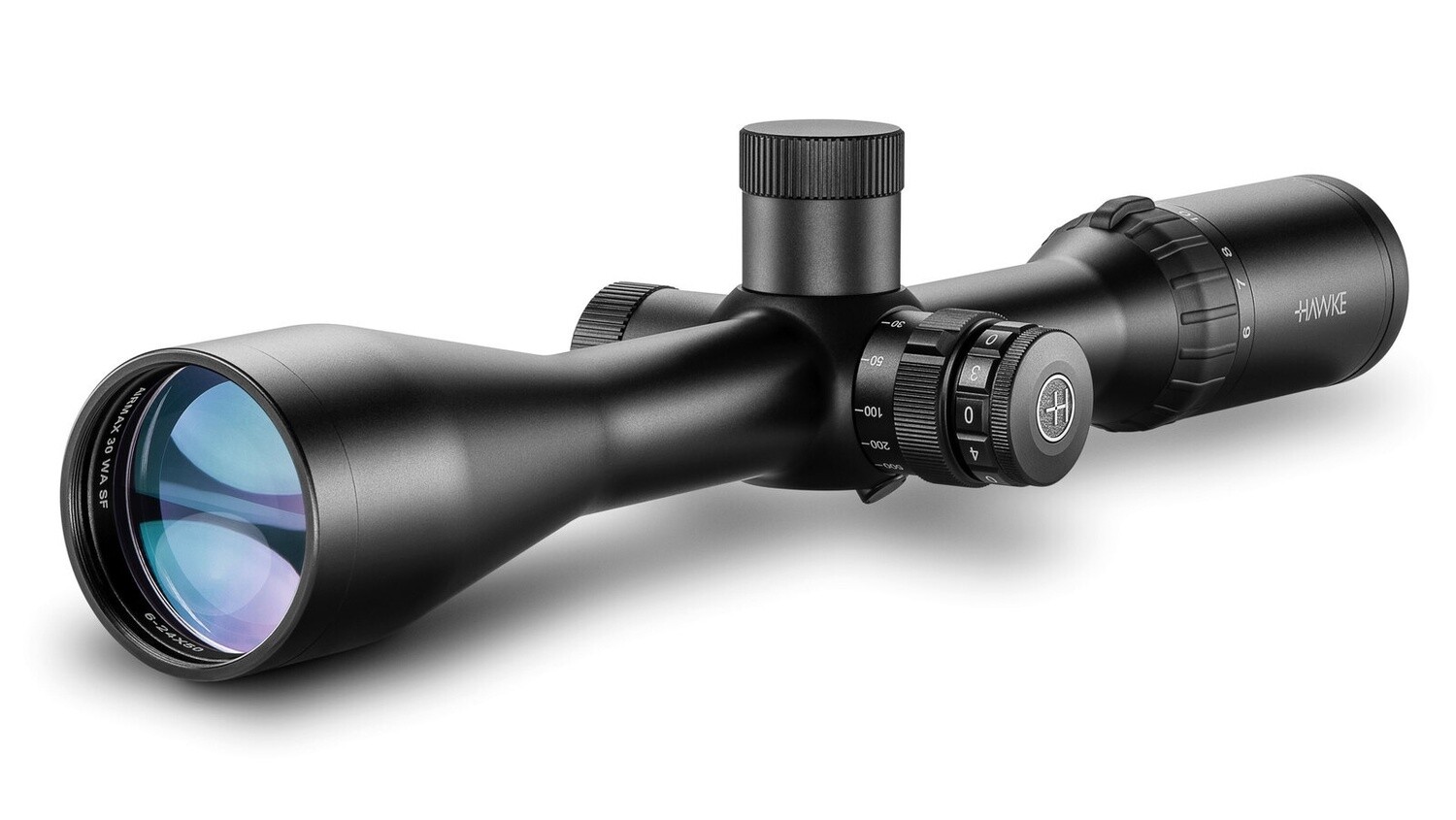

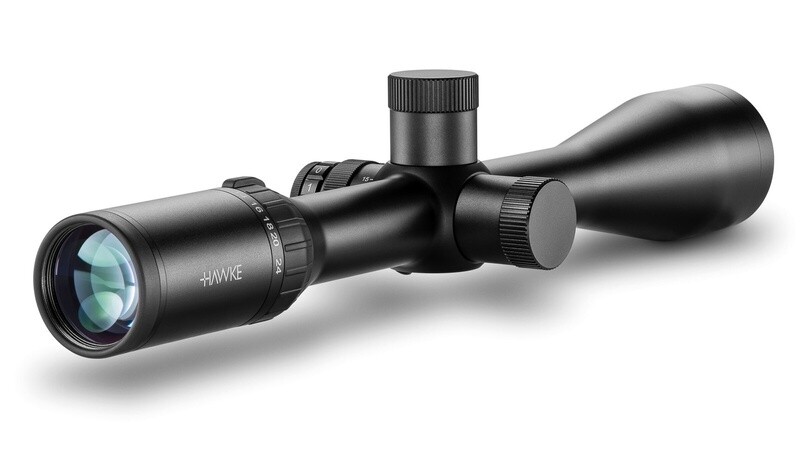

Hawke Airmax 30 SF 6-24x50 AMX IR

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

• Capped Target Turrets
• 30mm Mono-Tube Chassis
• Wide Angle
• Side Focus
• Illumination
• 16 Layer Fully Multi-Coated Lenses
• High Torque Zoom Ring
• Fast Focus Eyebell
• AMX Reticle Designed For Airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

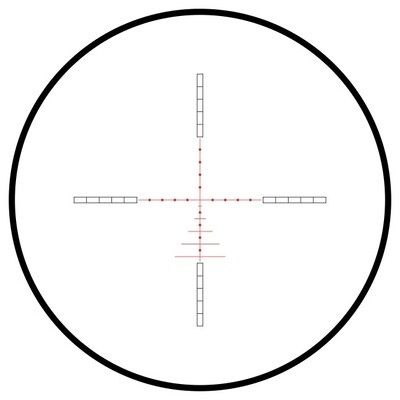

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Length: 378mm     14.9"

Weight: 770g     27.2oz

Eye relief: 102mm     4"

Focus/Parallax - Side Focus: 9m - ∞     10yds - ∞

Field of View: 6.8-1.7m @100m     20.3-5.1ft @100yds

Exit Pupil: 8.3-2.1mm     0.33-0.08"

Chassis: 30mm Mono-tube

Optical System: 6-24x

Objective: 50mm

Illumination: Red (6 Levels With Off Positions In-Between)

Reticle: AMX IR

Elevation Increment: 1⁄10 MRAD

Elevation Adjustment Range: 17 MRAD

Windage Increment: 1⁄10 MRAD

Windage Adjustment Range: 17 MRAD

Material: Aluminium

Ocular Type: Fast Focus

Lens Coating: Fully Multi-Coated - 16 Layers

Power Selector Style: Knurled Posi-Grip

Focal Plane: Second Focal Plane (SFP)

Turret Caps: Yes

Turret Type: Capped Target Turrets
